"From Electric to Acoustic in a Twist: The Game-Changing Power of the Piezo Pickup"

Guitar Thrills Magazine
Posted: August 14, 2025
Cream Deluxe Revolver | Guitar Thrills Magazine
"The piezo pickup turns the Cream Revolver Deluxe into more than a guitar—it becomes a chameleon of tone, effortlessly shifting from electric grit to acoustic shimmer with a single touch." – Guitar Thrills Magazine

Photo provided by Cream Guitars

Guitar Thrills Magazine

MEDIA PUBLISHING COMPANY | GUITAR THRILLS MAGAZINE TAMPA, FL U.S.A.

Guitar Thrills Magazine

Founded in 2021. GUITAR THRILLS MAGAZINE of Tampa, FL Guitar Thrills Magazine of Tampa, FL U.S.A. The GUITAR THRILLS MAGAZINE is excited to bring you some of the music industries finest talent. Including the world of entertainment. Our focus includes the long term goals and aspirations of artists of all sorts. We are an unbiased reporting platform. You are getting insight into the world of music. No, we are not your fathers website for music news. We have grown into our own, and rely upon decades of music experience and knowledge. Guitar Thrills Magazine is a hard act to follow.

__________________________________________________________________________________

The piezo pickup is a type of transducer used in musical instruments to convert vibrations into an electrical signal.

  • How it works
    It uses a piezoelectric material (often a crystal or ceramic) that generates a voltage when it is mechanically stressed. When an instrument’s bridge, saddle, or soundboard vibrates, the piezo element picks up those vibrations directly.
  • Common uses
    • Acoustic guitars (especially for amplifying without a microphone)
    • Violins, cellos, double basses
    • Some percussion instruments
    • Contact mics for experimental or folk instruments
  • Sound characteristics
    Piezo pickups have a bright, percussive tone and are less prone to feedback than microphones, but they can sound “quacky” or harsh if not paired with a good preamp or EQ.
  • Placement
    They’re usually mounted under the bridge saddle or attached directly to the instrument’s body, so they sense string or surface vibrations rather than air pressure.

The piezo pickup is important because it allows an electric guitar to capture the natural resonance and articulation of the instrument in a way that magnetic pickups cannot. Unlike magnetic pickups, which sense string vibration through metal interaction, a piezo pickup responds directly to the physical vibrations of the bridge and body. This produces a crisp, articulate tone that closely resembles an acoustic guitar, making it invaluable for players who want versatile sound options without switching instruments. In models like the Cream Revolver Deluxe, the piezo system can be blended with magnetic pickups or used independently, giving guitarists the ability to move seamlessly from warm electric tones to bright, percussive acoustic textures in both live and studio settings.

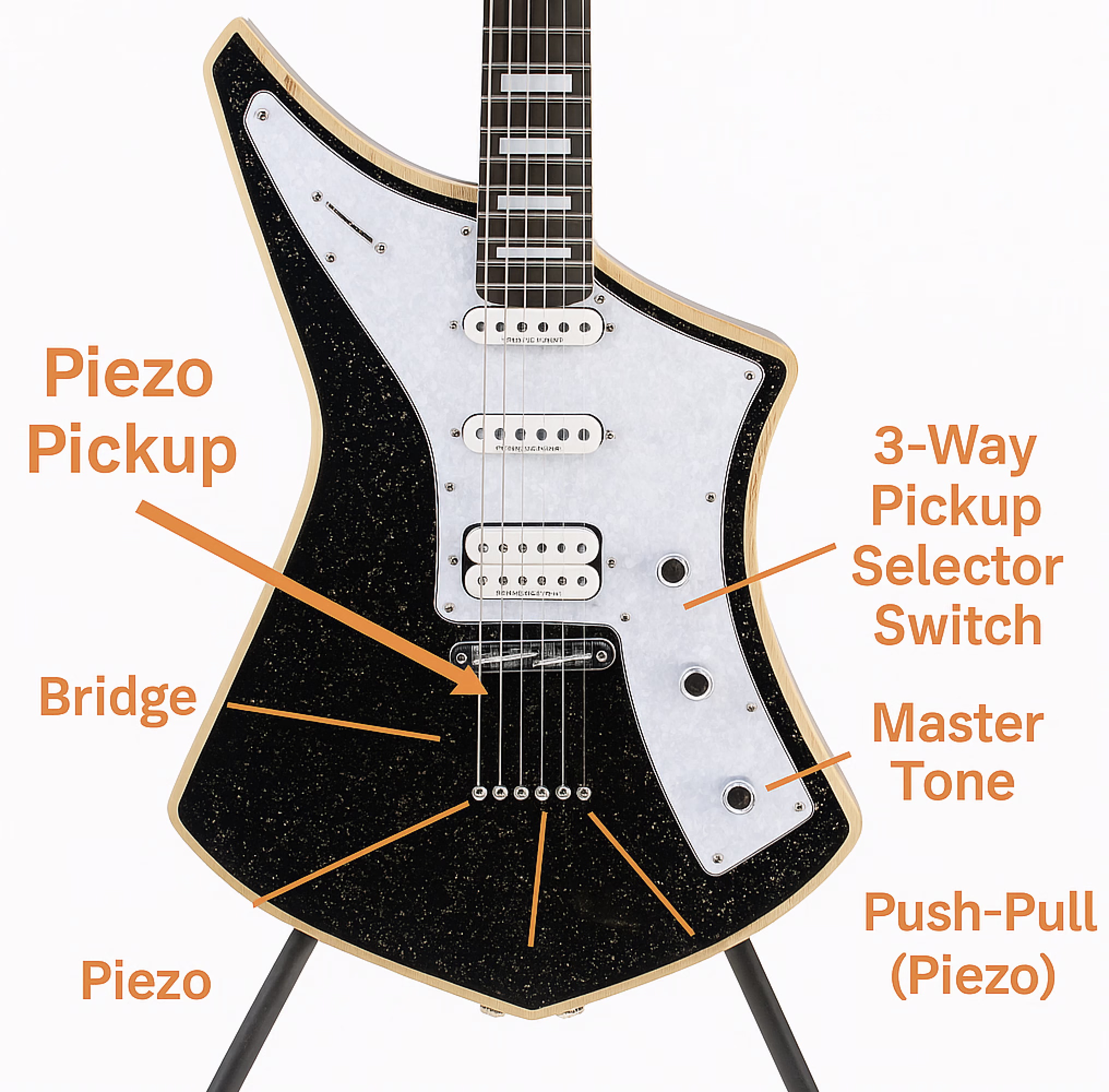

The location of the Piezo Pickup on the Revolver Deluxe

  • The piezo pickup is integrated into the bridge assembly of the guitar (specifically a Tune-o-Matic style bridge), meaning it sits right where the strings anchor to the body.
  • It captures vibration directly from the bridge rather than from the air, delivering that crisp, acoustic-like sparkle.

How to Activate and Control It

  • The piezo system is activated via a push‑pull function on one of the control knobs—typically, the outermost knob (Master Volume or similarly labeled)—and that same control also modulates its volume
  • Additionally, there’s a dedicated "Piezo Tone" knob for adjusting the tonal character of the piezo output.

Quick Summary

FeatureDetails
LocationBuilt into the Tune-o-Matic bridge (right where strings are anchored)
ActivationPush-pull control on the outer knob (engages/disengages piezo)
Volume ControlSame push-pull knob adjusts volume when piezo is engaged
Tone AdjustmentDedicated "Piezo Tone" knob allows shaping of the piezo output

Pickup Configuration on the Cream Revolver Deluxe

According to the official specifications from Cream Guitars (as listed on their Japanese site), the Revolver Deluxe includes:

  • Neck pickup: Seymour Duncan SSL-1 Vintage Staggered Stratocaster, white cover
  • Middle pickup: Seymour Duncan SSL-1 Vintage Staggered Strat, white cover
  • Bridge pickup: Seymour Duncan SH-4 "JB" Humbucker, white open-coil
  • Piezo pickup: Kaiser Piezo embedded in the bridge

To break it down:

  • Two single-coil pickups (SSL-1) in neck and middle positions, delivering classic Strat-like clarity and chime.
  • One humbucker (SH-4 JB) at the bridge, offering beefier, high-output tones.
  • A piezo system built into the bridge, giving acoustic-like tonal flexibility—great for blending or switching between electric and acoustic textures.

This lineup combines the best of both worlds—vintage-style single-coil sparkle, humbucker punch, and acoustic resonance, all in one versatile instrument.

Additionally, Reverb listings note the Revolver Deluxe model features "a total of 4 pickups (2 single, 1 humbucker with piezo pickup)" and tout an expansive tonal palette with “20 (+1) different tone colors” using its 5-way selector and push-pull controls **

Some boutique sellers also mention variations using SSL‑1, SSL‑2 (middle), and JB pickups—adding even more tonal nuance depending on the build *

PositionPickup Type
NeckSeymour Duncan SSL-1 Vintage Staggered Strat
MiddleSeymour Duncan SSL-1 Vintage Staggered Strat
BridgeSeymour Duncan SH-4 “JB” Humbucker
Bridge PiezoKaiser Piezo Bridge

Summary Table

    ┌─────────────────────────────────────────────────────────────┐

    │                    CREAM REVOLVER DELUXE                    │

    ├─────────────────────────────────────────────────────────────┤

    │   [Knob 1] Master Volume  → Magnetic Pickups (SSL-1 / SH-4)  │

    │          Push/Pull: Series / Coil Split (Magnetic only)      │

    │                                                             │

    │   [Knob 2] Magnetic Tone → Affects magnetic pickups only     │

    │                                                             │

    │   [Knob 3] Piezo Tone → Affects piezo signal tone            │

    │          Push/Pull: Piezo ON / OFF toggle                    │

    │                                                             │

    │   [Switch] 5-Way Selector → Magnetic pickup combinations     │

    │                                                             │

    │   Output Jack(s):                                            │

    │       - Mono: Magnetic + Piezo blend (controlled on-board)   │

    │       - Stereo/TRS: Magnetic & Piezo to separate amps/PA     │

    └─────────────────────────────────────────────────────────────┘

How to Use the Piezo

  1. Plug In
    • Use a regular mono cable if you want the magnetic and piezo blended into one signal.
    • Use a TRS stereo cable + splitter if you want to send magnetic to a guitar amp and piezo to an acoustic amp/PA.
  2. Activate the Piezo
    • Pull up Knob 3 (Piezo Tone knob) — this engages the piezo circuit.
    • Leave it down for magnetic pickups only.
  3. Adjust the Tone
    • Use Knob 3 (in pulled-up position) to shape the piezo sound — bright for more shimmer, rolled back for warmer acoustic tones.
  4. Blend With Magnetics
    • When the piezo is on, both signals mix internally (mono mode) or route separately (stereo mode).
    • The Master Volume affects the magnetic signal; piezo level is passive through its tone circuit.

Tips for Best Sound

  • Battery Check – Piezo requires a 9V battery. Weak battery = thin or no output.
  • Separate Amps – For true acoustic realism, send piezo to a clean/full-range acoustic amp or direct box to PA.
  • EQ Carefully – Piezo can be bright; rolling off highs on your amp or using onboard tone helps balance

Guitar Thrills Magazine Opinion:
At Guitar Thrills Magazine, we believe the piezo pickup is one of the most underrated innovations in modern guitar design. Its ability to unlock authentic, acoustic-like tones from a solid-body instrument isn’t just a convenience—it’s a creative superpower. The tonal versatility it offers transforms a guitar like the Cream Revolver Deluxe into a true multi-genre workhorse, capable of delivering shimmering cleans, percussive strums, and dynamic blends that magnetic pickups alone can’t match. For gigging musicians, the piezo isn’t just an extra feature—it’s the difference between carrying one guitar or two, and between sticking to the familiar or boldly expanding your sonic palette.
